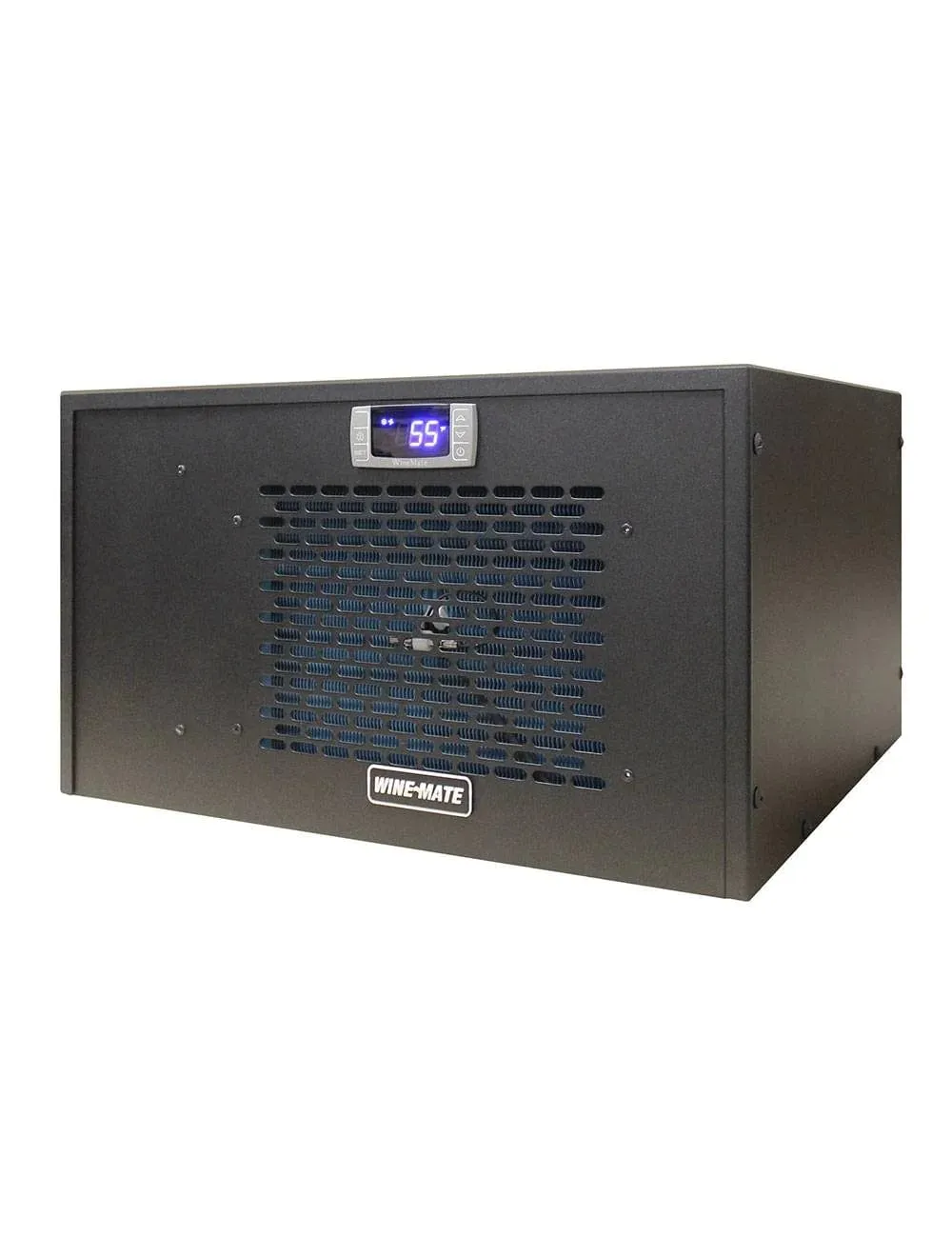

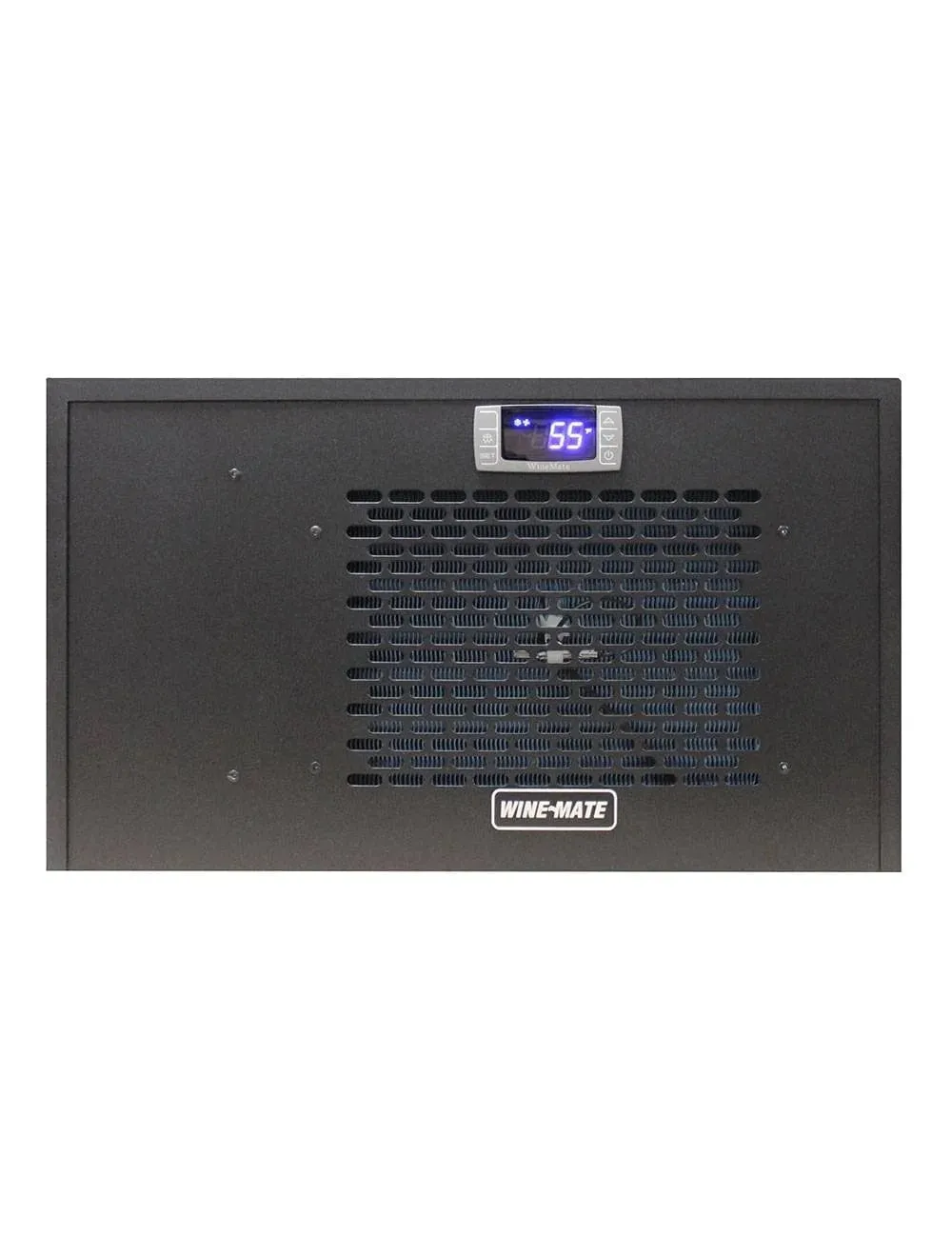

The Ultimate Cooling Solution for Precise Wine Storage and Beyond

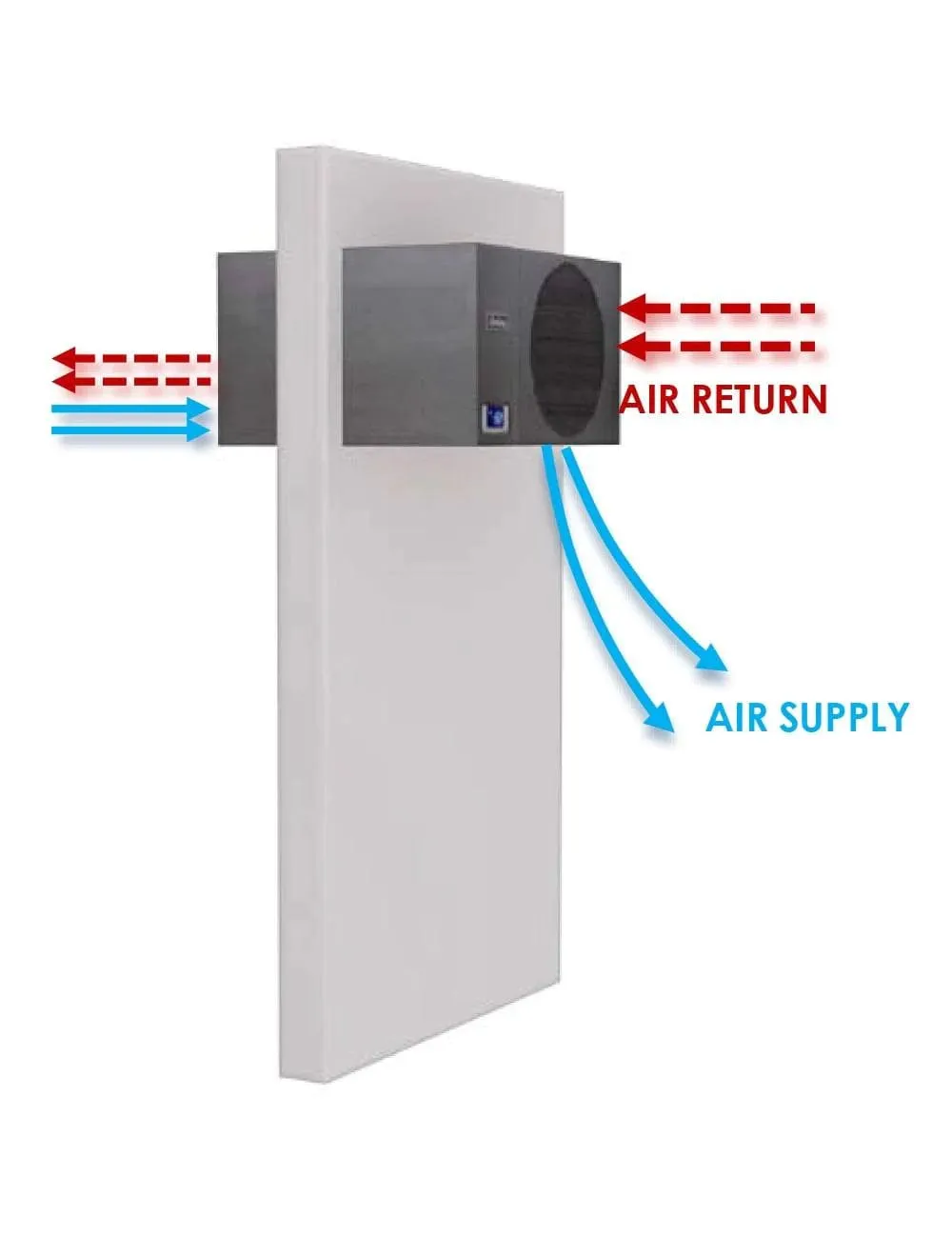

Provide a more stable temperature and humidity controlled environment for your wine with the Wine-Mate 1500CD self-contained cooling system. The Wine-Mate 1500CD has a cooling capacity of 90 cubic feet. With bottom cold air discharge and multiple top and rear hot air exhaust, this durable unit is equipped with an LED digital display which includes an alarm feature that will alert you to cooling issues, and easy power on/of switch, and reliable digital electronic thermostat. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards. Top, rear and side exhaust options are available for convenient installation of this unit. Plus, no refrigeration specialists are needed--it ships to you fully-charged and ready to use.
Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!
Features
- SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
- EXHAUST: Rear (standard)

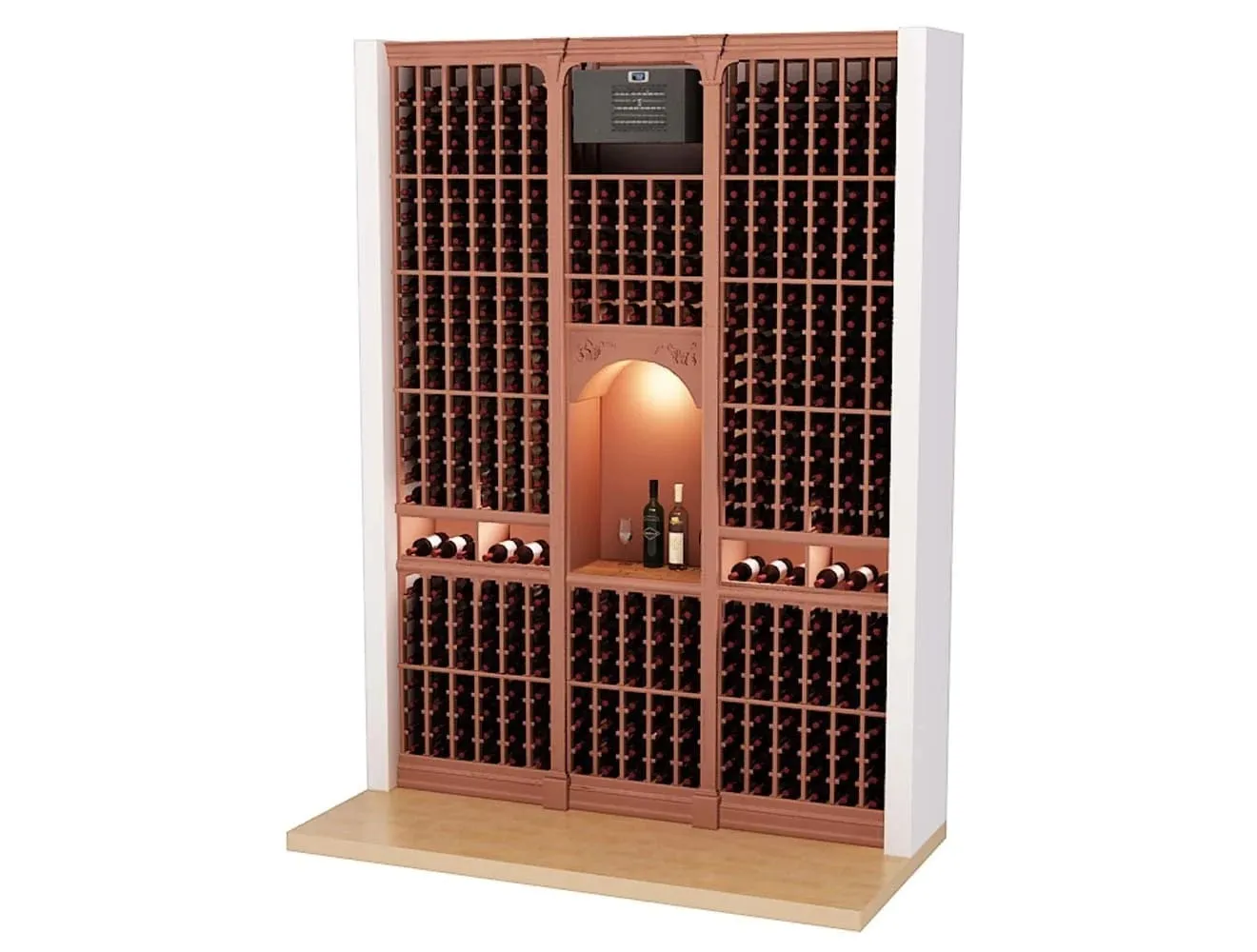

- VENTING: When installed into a wine cabinet, this unit must vent outside the wine cabinet.
- TEMPERATURE: WM-1500CD cooling units are designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
- AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-1500CD should not be higher than 78°F or lower than 50°F in order to operate properly.
- If the exhaust ambient temperature exceeds 78°F, one size larger unit must be used.
- HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
- WM-1500CD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
- REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly

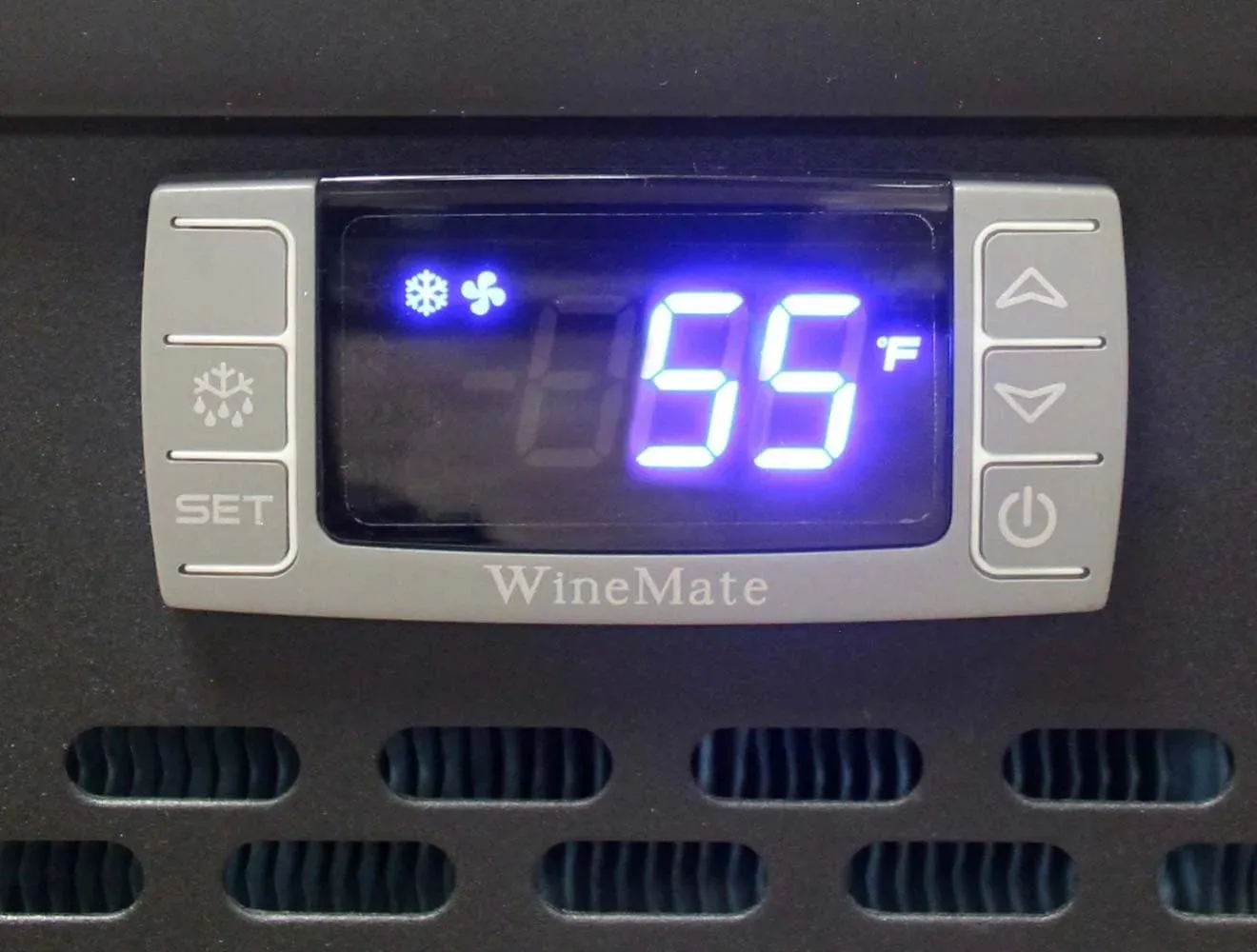

- DISPLAY: Digital display with easy push-button controls
- NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
- CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
- CD cooling units have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.

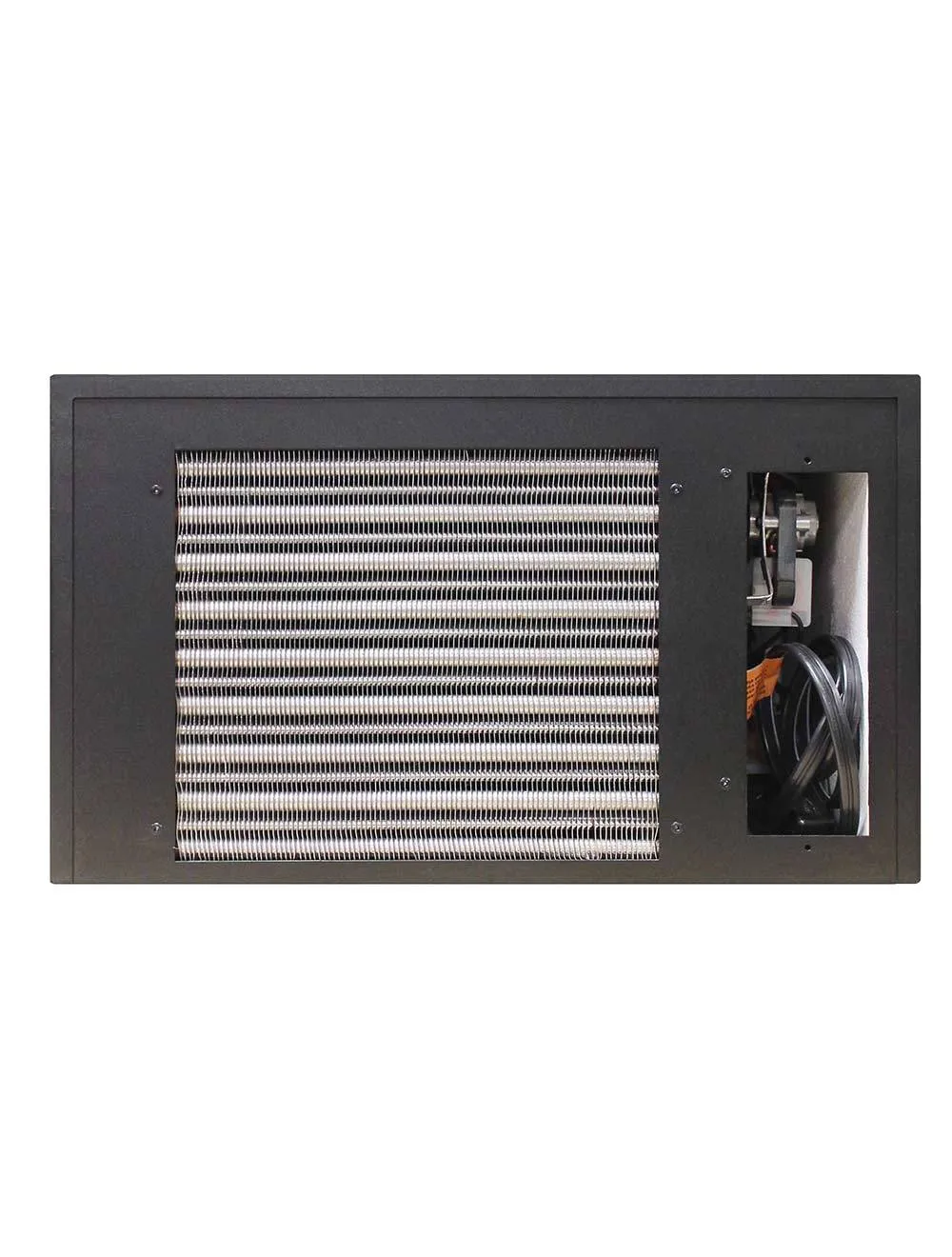

- Removable grill for easy cleaning.
- In order to use a CD unit in a front exhaust wine cabinet, the bottom power cord is replaced with a front power cord.
- Modifications to make this unit front cord can be made at an additional cost.
- WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.
- CERTIFICATIONS: UL Approved
-
ELECTRICAL REQUIREMENTS: 115V 60Hz 4A
-
DIMENSIONS: 18” W x 16 1/2” D x 10 1/2” H
-
WEIGHT: 50 lbs
-
NOISE: 49 dBA for cooling unit, 46 dBA for cabinet
-
CFM: 120
-
BTU/h: 1500
-
COVERAGE SIZE: 90 Cubic Feet
NOTE: Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.
